Lenovo ThinkSystem SR860 V2 4U Rack Server 48x 2.5-inch hot-swap drive bays

Name: Lenovo ThinkSystem SR860 V2 4U Rack Server 48x 25inch hotswap drive bays
Brand: Lenovo
Price: 2 USD

Quality Lenovo ThinkSystem SR860 V2 4U Rack Server 48x 2.5-inch hot-swap drive bays for sale

Brand Name : Lenovo

Model Number : SR860 V2

Place of Origin : China

MOQ : 1 pieces

Price : $2,200.00 - $4,200.00/pieces

Payment Terms : T/T

Supply Ability : 100 Carton/Cartons per Month

Delivery Time : 1-2months

Packaging Details : Original Packing

Products Status : Stock

Type : Rack

Processor Type : 3-gen Intel Xeon Scalable processors

Memory : 48 DIMM slots

Hard Drive : Up to 48x 2.5-inch hot-swap drive bays

RAID support : 12 Gb SAS/SATA RAID adapters

Power Supply : Two hot-swap redundant AC power supplies

Warranty : 3 years

Port : Shanghai/Shenzhen/Beijing/HongKong

Contact Now

Lenovo ThinkSystem SR860 V2 4U Rack Server 48x 2.5-inch hot-swap drive bays

Machine types	7Z60 - 3-year warranty
Processor	Two or four third-generation Intel Xeon Scalable processors, either Gold or Platinum level processors, with H or HL suffixes (formerly codename "Cooper Lake" or CPX6). Supports processors up to 28 cores, core speeds up to 3.9 GHz, and TDP ratings up to 250W. Two processor sockets on the system board and two processors on the Processor and Memory Expansion Tray. Six Intel Ultra Path Interconnect (UPI) links at 10.4 GT/s each. Four processors are connected in a mesh topology.
Memory	Up to 48 DIMM slots (12 DIMMs per processor). Each processor has 6 memory channels, with 2 DIMMs per channel. Lenovo TruDDR4 RDIMMs and 3DS RDIMMs are supported. 24 DIMM sockets on the system board, and an additional 24 DIMM sockets on the processor and memory expansion tray. DIMM slots are shared between standard system memory and persistent memory. DIMMs operate at up to 3200 MHz at 2 DPC.
Drive Bays	Up to 48x 2.5-inch hot-swap drive bays: * Up to 48x SAS/SATA drive bays * Up to 24x SAS/SATA + 24x NVMe drive bays * Up to 24x SAS/SATA + 24x AnyBay drive bays (support SAS or SATA or NVMe drives) Optional two 7mm hot-swap SSD drive bays at the rear of the server, either SATA or NVMe, for OS boot or storage
Power Supply	Up to four hot-swap redundant AC power supplies (all 80 PLUS Platinum or Titanium certification): 750 W, 1100 W and 1800 W AC options, supporting 220 V AC. 750 W and 1100 W options also support 110V input supply. In China only, all power supply options support 240 V DC. Power supplies can be configured as N+1 or N+N.

Product Tags:

Lenovo ThinkSystem SR860

SR860 V2 4U Rack Server

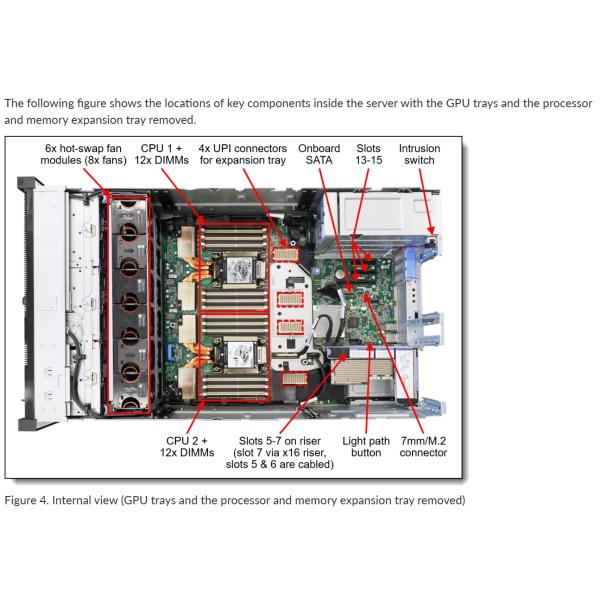

Lenovo ThinkSystem SR860 V2 4U Rack Server 48x 2.5-inch hot-swap drive bays Images
